UPA Rapid Mini


Inox steel ; CE Certifikati
Inox steel ; CE Certifikati
High Performance
High Performance
High reliability
High reliability
Reduced consumption
Reduced consumption
Reduced noise
Reduced noise
Eco-friendly
Eco-friendly
UPA Rapid Mini
two dosage (for powder products and liquids)

UPA Rapid Mini
with two channels linear dosing scales

Gallery

Check out these great pictures!

UPA Rapid Mini with the unit for a double dosage (powder and liquid)
Dimensions of the machine Specifications

Width 1200-1340 mm
Depth 1700-1900 mm
Height 1450-1960 mm

Capacity up to 30 bags / min

Power Consumption; 3 kW/380V/50Hz

Packaging material; Termoboiled films

Dimensions bags: width of 95-200 mm
length of 100-350 mm

Dimensions developed film: width 210-425 mm

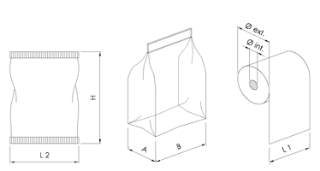

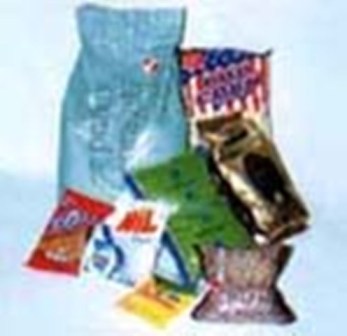

Packaging material and format

UPA Rapid Mini

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.
The machines run with an intermittent movement using a “form-dose-seal” system. The forming collar tube fits the width of the film and can be chosen by the customer in accordance with the desired bag size.
The length of the bag can be determined by a photoelectric cell or by an encoder.
The machines are made of stainless steel and anodized aluminium and are equipped thus with a PLC as a touch-screen in order to assure a constant monitoring of the machine functions and parameters and to diagnose eventual alarms and anomalies.
For satisfying market needs, the machine can be equipped with different accessories: marking or printing system, dynamic control weigher, pneumatic trolley for lift new reel, out-put conveyors, elevator, system for Ethernet connection, photoelectric cell for centering the printing, labeling system, complete automatic lines.

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer

Dosing Unit

-

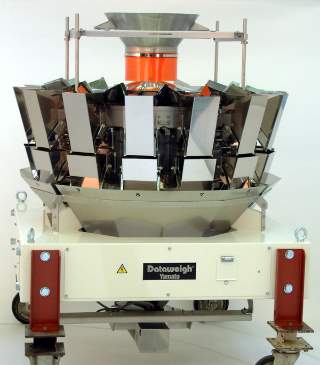

• Multi-head scales;
• Linear scales;
• Auger dosing unit;
• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.




UPA Rapid Mini with the 2 chanell weighing dosage system
Dimensions of the machine Specifications

Width 1200-1340 mm
Depth 1700-1900 mm
Height 1450-1960 mm

Capacity up to 30 bags / min

Power Consumption; 3 kW/380V/50Hz

Packaging material; Termoboiled films

Dimensions bags: width of 95-200 mm
length of 100-350 mm

Dimensions developed film: width 210-425 mm


Packaging material and format

UPA Rapid Mini

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.
The machines run with an intermittent movement using a “form-dose-seal” system. The forming collar tube fits the width of the film and can be chosen by the customer in accordance with the desired bag size.
The length of the bag can be determined by a photoelectric cell or by an encoder.
The machines are made of stainless steel and anodized aluminium and are equipped thus with a PLC as a touch-screen in order to assure a constant monitoring of the machine functions and parameters and to diagnose eventual alarms and anomalies.
For satisfying market needs, the machine can be equipped with different accessories: marking or printing system, dynamic control weigher, pneumatic trolley for lift new reel, out-put conveyors, elevator, system for Ethernet connection, photoelectric cell for centering the printing, labeling system, complete automatic lines.

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer

Dosing Unit

-

• Multi-head scales;
• Linear scales;
• Auger dosing unit;
• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.
