UPA Rapid Midi


Inox steel ; CE Certifikati
Inox steel ; CE Certifikati
High Performance
High Performance
High reliability
High reliability
Reduced consumption
Reduced consumption
Reduced noise
Reduced noise
Eco-friendly
Eco-friendly

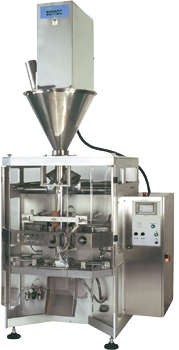

UPA Rapid Midi
with worm dispenser

UPA Rapid Midi
with two-channel linear dosing scale


UPA Rapid Midi
with a system of multihead dosing system

UPA Rapid Midi "CS
with a 6-line dosing unit for baking

Gallery

Check out these great pictures!

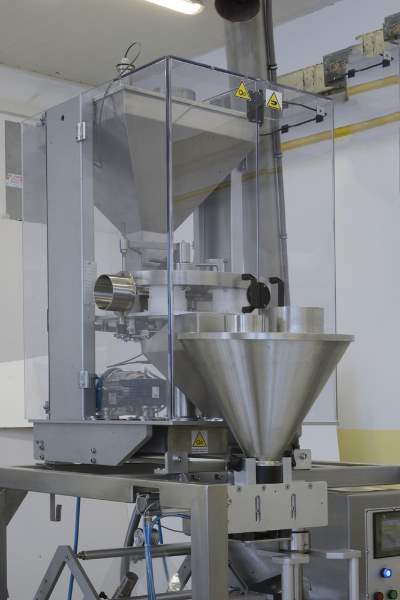

UPA Rapid Midi with worm dosing system

MACHINE DIMENSIONS
Width 1462 mm
Depth 1980 mm
Height 1622-1952 mm

TECHNICAL DATA
Capacity: up to 60/120 bags/min
Energy supply: 6 kW/380V/50Hz
Packaging material: sealable material
Bag dimensions: width 100-340 mm
length 150-600 mm
Film dimension: width 210-720 mm


Packaging material and format


UPA Rapid Midi

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.

The machines run with an intermittent movement using a “form-dose-seal” system. The forming collar tube fits the width of the film and can be chosen by the customer in accordance with the desired bag size.
The length of the bag can be determined by a photoelectric cell or by an encoder.

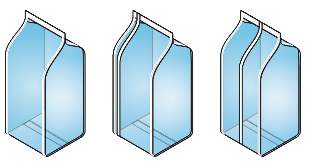

UPA RAPID MIDI packaging machines enable the formation of square-bottom bags (self-standing bags) with four vertical seals.
The machines are made of stainless steel and anodized aluminium and are equipped thus with a PLC as a touch-screen in order to assure a constant monitoring of the machine functions and parameters and to diagnose eventual alarms and anomalies.

For satisfying market needs, the machine can be equipped with different accessories: marking or printing system, dynamic control weigher, pneumatic trolley for lift new reel, out-put conveyors, elevator, system for Ethernet connection, photoelectric cell for centering the printing, labeling system, complete automatic lines.

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer

Dosing Unit

-

• Multi-head scales;
• Linear scales;
• Auger dosing unit;
• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.




UPA Rapid Midi chamber with linear scales

MACHINE DIMENSIONS
Width 1462 mm
Depth 1980 mm
Height 1622-1952 mm

TECHNICAL DATA
Capacity: up to 60/120 bags/min
Energy supply: 6 kW/380V/50Hz
Packaging material: sealable material
Bag dimensions: width 100-340 mm
length 150-600 mm
Film dimension: width 210-720 mm


Packaging material and format


UPA Rapid Midi

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.

The machines run with an intermittent movement using a “form-dose-seal” system. The forming collar tube fits the width of the film and can be chosen by the customer in accordance with the desired bag size.
The length of the bag can be determined by a photoelectric cell or by an encoder.

UPA RAPID MIDI packaging machines enable the formation of square-bottom bags (self-standing bags) with four vertical seals.
The machines are made of stainless steel and anodized aluminium and are equipped thus with a PLC as a touch-screen in order to assure a constant monitoring of the machine functions and parameters and to diagnose eventual alarms and anomalies.

For satisfying market needs, the machine can be equipped with different accessories: marking or printing system, dynamic control weigher, pneumatic trolley for lift new reel, out-put conveyors, elevator, system for Ethernet connection, photoelectric cell for centering the printing, labeling system, complete automatic lines.

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer

Dosing Unit

-

• Multi-head scales;
• Linear scales;
• Auger dosing unit;
• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.




UPA Rapid Midi
with multihead / chamber weighing system

MACHINE DIMENSIONS
Width 1462 mm
Depth 1980 mm
Height 1622-1952 mm

TECHNICAL DATA
Capacity: up to 60/120 bags/min
Energy supply: 6 kW/380V/50Hz
Packaging material: sealable material
Bag dimensions: width 100-340 mm
length 150-600 mm
Film dimension: width 210-720 mm


Packaging material and format


UPA Rapid Midi

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.

The machines run with an intermittent movement using a “form-dose-seal” system. The forming collar tube fits the width of the film and can be chosen by the customer in accordance with the desired bag size.
The length of the bag can be determined by a photoelectric cell or by an encoder.

UPA RAPID MIDI packaging machines enable the formation of square-bottom bags (self-standing bags) with four vertical seals.
The machines are made of stainless steel and anodized aluminium and are equipped thus with a PLC as a touch-screen in order to assure a constant monitoring of the machine functions and parameters and to diagnose eventual alarms and anomalies.

For satisfying market needs, the machine can be equipped with different accessories: marking or printing system, dynamic control weigher, pneumatic trolley for lift new reel, out-put conveyors, elevator, system for Ethernet connection, photoelectric cell for centering the printing, labeling system, complete automatic lines.

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer

Dosing Unit

-

• Multi-head scales;
• Linear scales;
• Auger dosing unit;
• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.




Vertical automatic Form-Fill-Seal (FFS) packaging model

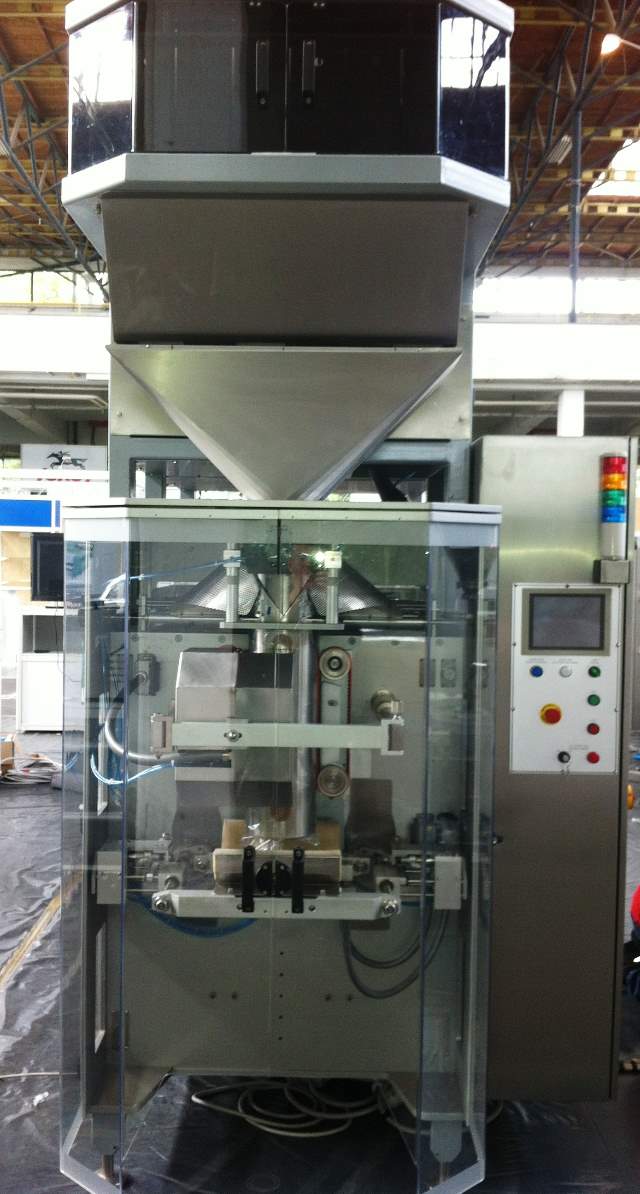

UPA RAPID „CS“complete with 6 – line counting – dosing unit for bakery
TECHNICAL DATA:

Capacity: up to 120 cycles/minute
Energy supply: 10 kW / 380 V / 50 Hz
Air consumption: 5 Nl/minute ( 4≈8 bar)
Bag dimmensions: width 100 – 340 mm
lenght 150 – 600 mm
Film dimensions: width 210 – 720 mm


Packaging material and format

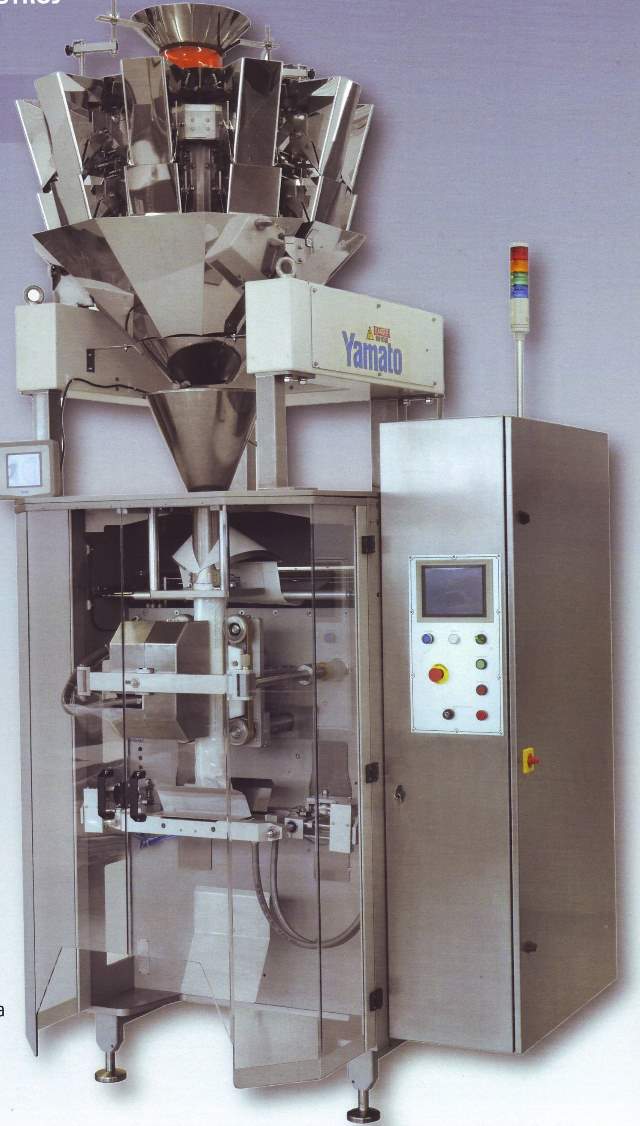

Vertical automatic Form-Fill-Seal (FFS) packaging model
UPA RAPID „CS“complete with multihead dosing system

UPA Rapid Midi "CS"-with continuous welding

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.

The ideal machine for packing rolls and piece goods in general, with a capacity of up to 120 cycles / min. The body of machine is made of aluminum and stainless steel.

All machine parts that come in contact with the packing medium are made of stainless steel, adequate controls quality. Machine is operated with central processing unit, which can adjust the control parameters on the control panel touch-screen.

For different types of packing media packages can be equipped with systems for labeling and printers, dynamic systems, measurement of weight products, pneumatic systems for raising pre-packed to the dosing system, output transporter, network management system, centering photocell reading printing films, or a fully automated system based on this machine,

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer





Dosing Unit:


• Multi-head scales;
• Linear scales;
• Auger dosing unit;
• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.
