AUTOMATIC Packaging Line
Inox steel ; CE Certifikati
Inox steel ; CE Certifikati
High Performance
High Performance
High reliability
High reliability
Reduced consumption
Reduced consumption
Reduced noise
Reduced noise
Eco-friendly
Eco-friendly
MULTITUBE -Automatic
packaging line
Tray Forming machine
+ Multitube 12 lanes
+ Tray Closing machine
UPA -Automatic packaging
line by dosing sachet
from the side into extra bags
MULTITUBE -Automatic line
for PHARMA packaging for
powder pharmaceuticals
products
UPA RAPID -Automatic line
for packing fine granular
materials good flow (sugar,
beans, corn grites, etc.)

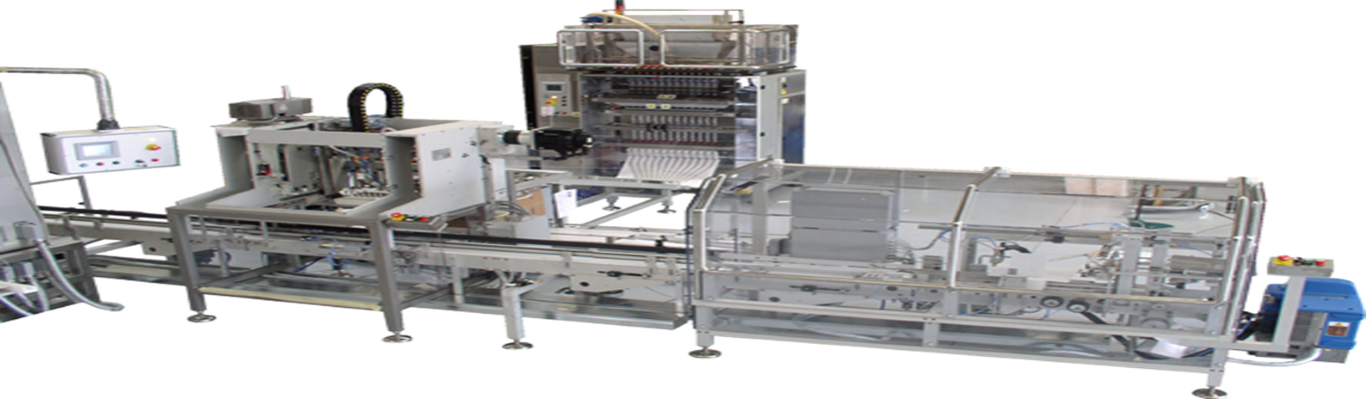

MULTITUBE -Automatic packaging line
Tray Forming machine + Multitube 12 lanes + Tray Closing machine


GENERAL TECHINICAL CHARACTERISTICS:

Installed power
10 - 20 Kw
Weight
800 - 1500 kg

Noise level
below 80 dB
Reel width
1000 - 1200* mm

Air consumption
400 - 600 Nl/min
Reel diameter
350 - 400* mm
IMPORTANT: the specification herein enclosed are exclusively approximated | *: (on request)





This Packing Line / Tape contains:

1 MULTITUBE Granular -12 line machine
2 Machine for forming boxes from a flat cut form
3 Conveyor box and closing and filling synchronization
4 PICK & PLACE box filling system
5 Cartoning machine
6 Box labeling machine

MULTITUBE -Automatic packaging line- in sticks

The MULTITUBE- Automatic line is an automatic stickpack packaging machine with continuous and intermittent motion to package stickpacks sealed on 3 sides.

MULTITUBE - Automatic line machines are equipped with a PLC and control display to constantly monitor functions and parameters, with the possibility to diagnose alarms and anomalies.

The balcony configuration, with the use of exclusive materials such as anodized aluminium and stainless steel, easy cleaning, and high versatility for format change are all technical features that make the machine compliant with GMP and FDA standards. The movement of the MULTITUBE - Automatic line machines is controlled by a brushless servo-motor which allows a wide range of stickpack length and machine speed, while maintaining high precision in the formation and centring of the stickpack. Depending on the characteristics of the products to be packaged, the MULTITUBE - Automatic line machine is used in various sectors of goods, such as foods, cosmetics, pharmaceuticals, and chemicals, thus fully satisfying market needs.
Types: Liquids and creams: MULTITUBE - Automatic line . Powders: MULTITUBE - Automatic line . Granular: etc...

Accessories and customization: counting and stacking assemblies, product feeding systems, marking/printing systems, weighing systems, cartoning and labellers, complete automatic lines.

Gallery

Check out these great pictures!


UPA -Automatic packaging line


GENERAL TECHINICAL CHARACTERISTICS:

Installed power
6 - 12 Kw
Weight
800 - 1500 kg

Noise level
below 80 dB
Reel width
1000 - 1200* mm

Air consumption
100 - 500 Nl/min
Reel diameter
350 - 450* mm
IMPORTANT: the specification herein enclosed are exclusively approximated | *: (on request)


This line contains:

1 UPA packaging machine
2 Coding unit
3 Stacking system
4 Buckets conveyor belt
5 Cartoning machine
6 Leaflet/Booklet feeder
7 Dynamic check weigher
8 Labelling machine

Automatic packaging line - in four-sided bags (sachets) and then in larger bags

UPA -Automatic packaging line is based on an automatic sachet packing machine with continuous and intermittent movement to packaged and welded on 4 sides.

UPA machines are equipped with a PLC and a control screen for continuous monitoring of functions and parameters, with the ability to diagnose alarms and anomalies.

Housing configuration, using exclusive materials such as anodized aluminum and stainless steel, easy to clean, and great versatility for changing formats, are all technical features that make the machine compliant with GMP and FDA standards. The movement of the UPA machines is controlled by a brushless servo motor that allows for a wide range of packing lengths and machine speeds while maintaining high precision in forming and centering the blades. Depending on the characteristics of the packaging product, the UPA machine is used in various sectors of goods, such as food, cosmetics, pharmaceuticals and chemicals, thus fully meeting the needs of the market.
 Types: Liquids and creams: UPA. Powders: UPA. Grain: UPA Liquids: UPA Granules

 Accessories and customization: counting and stacking circuits, product adding systems, marking / printing systems, weighing, cartoning and labeling systems, complete automatic lines.

Gallery

Check out these great pictures!

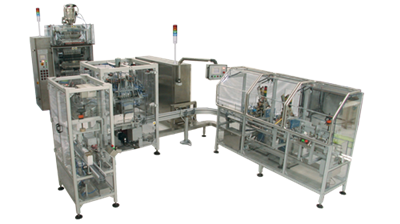

MULTITUBE -Automatic packaging line PHARMA
SPECIFICATIONS PRIMARAY MACHINE

Number pak line up to 20 lines / tape
Reall width up to 1200 mm
Dosage amount max 100 g
Stick dimensions 16-90 mm (w) x 50-210 mm (d)
Max capacity per line 40-60 cycles / min

GENERAL SPECIFICATIONS
Installed capacity 15 kW
Air consumption 700 Nl / min
Operating pressure metric 6.5 bar
Machine weight to 1500 kg
Diameter roll / coil 450 mm max


This line contains:

1.MULTITUBE – Pharma Machine
2.Transfer and stacking system
3.Conveyor
4.Dynamic check weigher
5.Rotating Pick and Place at 4 station
6.Storage for the missing sticks
7.Flexlink conveyor
8.Bar Code Reader
9.Coding Unit
10.Leaflet/Booklet feeder
11.Carton tongue or hot melt closing system
12.Forming box machine
13.Cartoning machine

MULTITUBE -Automatic packaging line- in sticks

The MULTITUBE- Automatic line is an automatic stickpack packaging machine with continuous and intermittent motion to package stickpacks sealed on 3 sides.

MULTITUBE - Automatic line machines are equipped with a PLC and control display to constantly monitor functions and parameters, with the possibility to diagnose alarms and anomalies.

The balcony configuration, with the use of exclusive materials such as anodized aluminium and stainless steel, easy cleaning, and high versatility for format change are all technical features that make the machine compliant with GMP and FDA standards. The movement of the MULTITUBE - Automatic line machines is controlled by a brushless servo-motor which allows a wide range of stickpack length and machine speed, while maintaining high precision in the formation and centring of the stickpack. Depending on the characteristics of the products to be packaged, the MULTITUBE - Automatic line machine is used in various sectors of goods, such as foods, cosmetics, pharmaceuticals, and chemicals, thus fully satisfying market needs.
Types: Liquids and creams: MULTITUBE - Automatic line . Powders: MULTITUBE - Automatic line . Granular: etc...

Accessories and customization: counting and stacking assemblies, product feeding systems, marking/printing systems, weighing systems, cartoning and labellers, complete automatic lines.

Gallery

Check out these great pictures!

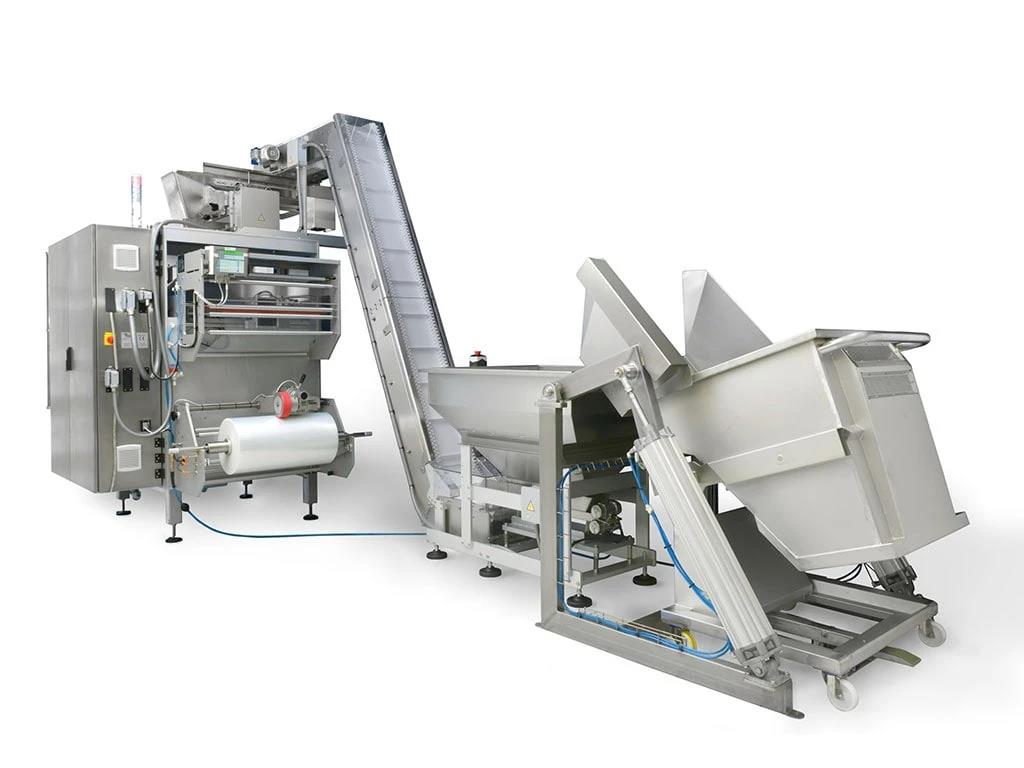

UPA RAPID MINI -Automatic packaging line
fine-grained products with good throughput
Machine dimensions Specifications:

Width 1200-1340 mm
Depth 1700-1900 mm
Height 1450-1960 mm

Capacity up to 30 bags / min

Energy consumption; 3 kW / 380V / 50Hz

Packaging material: Heat-resistant materials

Sizes of bags: width 95-200 mm
length 100-350 mm

Dimensions of the developed film: width 210-425 mm

This packaging line contains:

UPA RAPID MINI- basic packing machine
Metal detector
Worm elevator for picking up the packing medium
Volumetric dispenser 6/1 with telescopic vessels
Drain conveyor
Synchronizing conveyor
Swivel summit table for product grouping

UPA RAPID MINI -Automatic Packaging Line- MACHINES WHICH CAN FORM FIXED BAGS, FLAT BOTTOM BAGS

The UPA RAPID Vertical Automatic Packaging Machine can design, fill and weld the widest range of single, double or multi-layer foil bags with thermal sealing for various types of products such as powders, granules, liquids and individual pieces. It is used in various sectors of goods, such as food, medicine, cosmetics and chemicals.

The movement of these machines is in intermittent motion using a "molding-dosing-welding" system.

The collar forming tube fits into the width of the foil and can be selected by the customer according to the desired size of the bag.
The length of the bag can be determined by a photoelectric cell or by means of an encoder.

The machines are made of stainless steel and anodized aluminum and are equipped with a PLC as well as a control touch screen to ensure continuous monitoring of machine functions and parameters and to diagnose possible alarms and anomalies.

To meet the needs of the market, the machine can be equipped with various accessories: marking or printing system, dynamic control roller, pneumatic roller lift, feed and discharge conveyors, elevator, Ethernet connection system, photoelectric cell for centering, marking system , complete automatic lines.

Galerija slika proizvoda i pakovina
