Desk vacuum packing machine
Desk vacuum packing machine-BASIC DISPLAY 400

The new "Line SATURNO", characterized by extreme accuracy in detail and is equipped with several job functions, it is possible to locate the top of its category, the full implementation in the catering area, gastronomy, etc.
Standard Accessories / options provide the following benefits:

1.Vacuum Sensor: sensor of the volumetric pressure, self-regulated the vacuum cycle
2.Liquid sensor: measures the boiling phase activating the sealing cycle
3.Program for marinating meat and fish




TECHNICAL CHARACTERISTICS /TEHNI
Č
KE KARAKTERISTIKE



 Model

 BASIC DISPLAY 400

 Structure / Kućište

Inox

 Overall dimension / Ukupne dimenzije

 mm 510 x580x450 H

Size of the chamber/ Veličina vakumske komore

mm  410 x 450x220 H

 Sealing bar / Vareća letva

mm 400

Dimensions of packaging materials/Dimenzije ambalažnog materijala

 380 mm x 450 mm MAX

 Vacuum pump / Vakumska pumpa

Q= 20 m3h-OIL

Sealing system/ Način zavarivanja:

pulsed- WIRELESS PISTONS / impulsni- BEŽIČNI KLIPOVI

 Weight / Težina

Kg 58

 Absorption  / Snaga

 W 1150

 Voltage / Napajanje

230 V/50 Hz

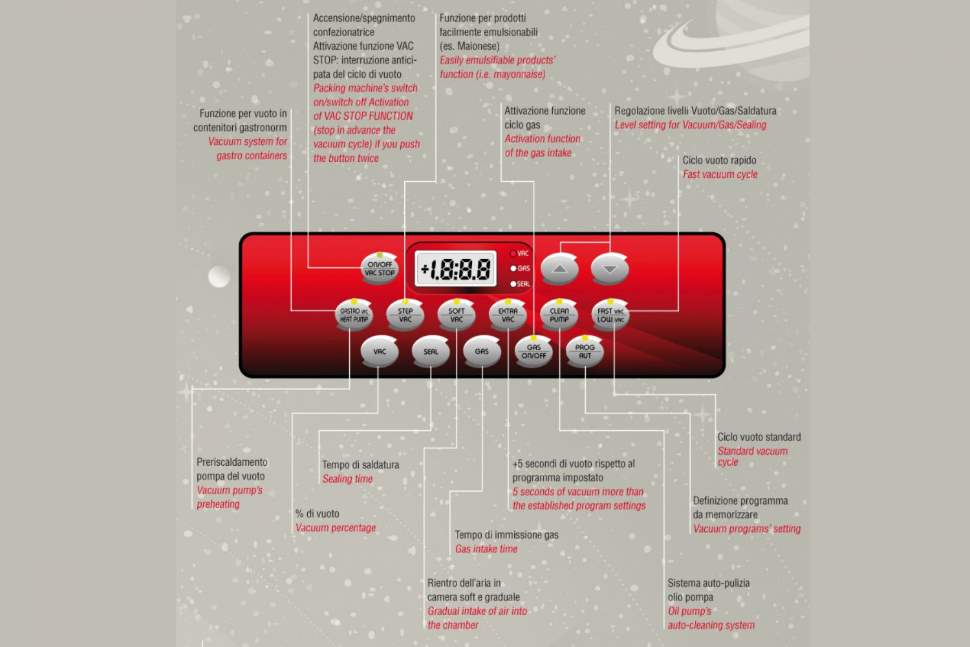

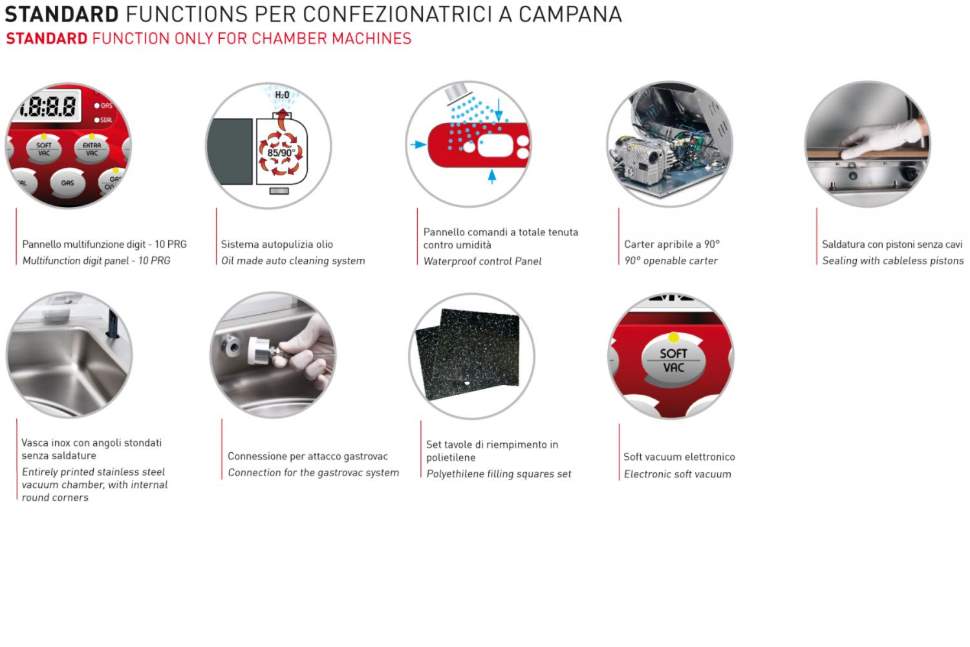

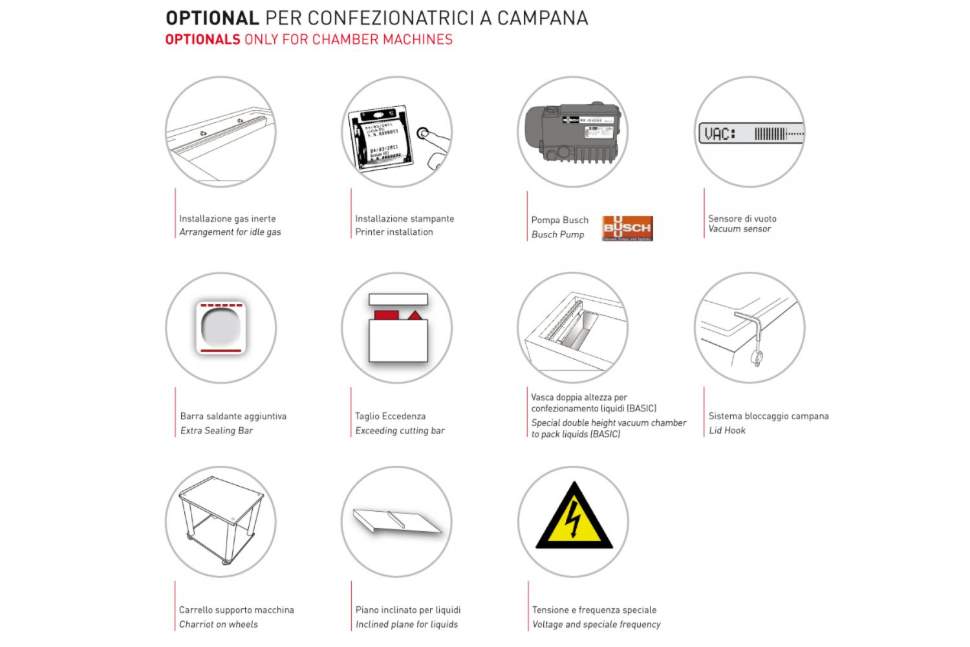

STANDARD FUNCTION; CONTROL BOARD;  ADDITIONAL EQUIPMENT
